[EXA] 40G QSFP+ BiDi 100m ¸ÖƼ¸ðµå ±¤¸ðµâ
MSA±âº» ±¤¸ðµâ, 2x 20Gb/s, 2x LC, 100m QSFP+ BiDi, ¸ÖƼ¸ðµå 850nm, VCSEL, Multimode, µ¥ÀÌÅͼ¾ÅÍ,SAN,½ºÅ丮Áö
ÆÇ¸Å°¡°Ý 800,000 ¿ø
°ü·Ã»óǰ Æ÷ÇÔ°¡ 800,000 ¿ø
¸ðµ¨¸í EXA-40G-QC01BD
Á¦Á¶¿ø EXA OPTICS
¿ø»êÁö Çѱ¹/Áß±¹
Àç°í ÆÇ¸ÅÁß
±¸¸Å¼ö·® EA
ÇÔ²²±¸¸Å
 ±¹»ê 10G(±â°¡) OM3 ±¤Á¡ÆÛÄÚµå (LC-LC OM3-DP) 3m
 ±¹»ê °í¼º´É, 10G(10±â°¡)Àü¿ë, OM3, 50/125, (¿É¼Ç:5~100m ÁÖ¹®Á¦ÀÛ)

19,600¿ø

[EXA] 40G QSFP+ BiDi 100m ¸ÖƼ¸ðµå ±¤¸ðµâ

PN #: EXA-40G-QC01BD

MSA±âº» ±¤¸ðµâ, 2x 20Gb/s, 2x LC,  100m QSFP+ BiDi,  ¸ÖƼ¸ðµå 850nm, VCSEL, Multimode, µ¥ÀÌÅͼ¾ÅÍ,SAN,½ºÅ丮Áö

(Àç°í¹®ÀÇ ¿ä¸Á)



Á¦Ç°Æ¯Â¡

• Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
• Compliant to QSFP+ SFF-8436 Specification
• Aggregate bandwidth of > 40Gbps
• Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
• QSFP MSA compliant
• Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
• Single +3.3V power supply operating
• Built-in digital diagnostic functions
• Temperature range 0¡ÆC to 70¡ÆC
• RoHS Compliant Part
• Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure


Á¦Ç°Àû¿ë

• 40 Gigabit Ethernet interconnects
• Datacom/Telecom switch & router connections
• Data aggregation and backplane applications
• Proprietary protocol and density applications


»ó¼¼¼³¸í

It is a Four-Channel,Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver
for 40 Gigabit Ethernet Applications.

This transceiver is a high performance module for short-range duplex data communication
and interconnect applications.

It integrates four electrical data lanes in each direction into transmission
over a single LC duplex fiber optic cable.
Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.

The transceiver internally multiplexes an XLPPI 4x10G interface into
two 20Gb/s electrical channels, transmitting and receiving each optically
over one simplex LC fiber using bidirectional optics.

This results in an aggregate bandwidth of 40Gbps into a duplex LC cable.
This allows reuse of the installed LC duplex cabling infrastructure for 40GbE application.

Link distances up to 100 m using OM3 and 150m using OM4 optical fiber are supported.
These modules are de- signed to operate over multimode fiber systems using
a nominal wavelength of 850nm on one end and 900nm on the other end.

The electrical interface uses a 38 contact QSFP+ type edge connector.
The optical interface uses a conventional LC duplex connector.

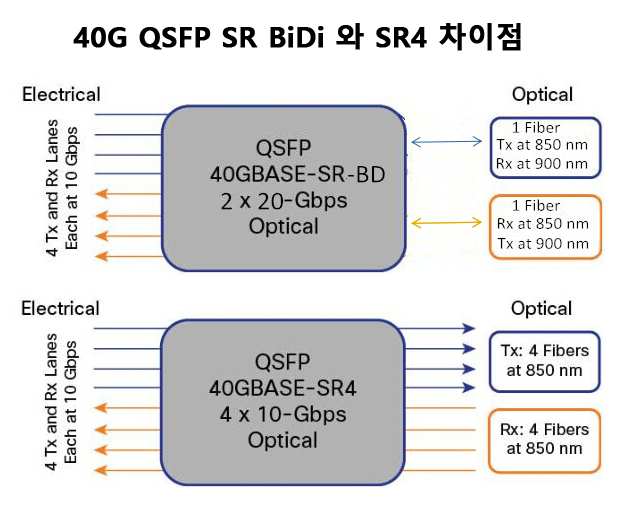

QSFP-BIDI-SR4

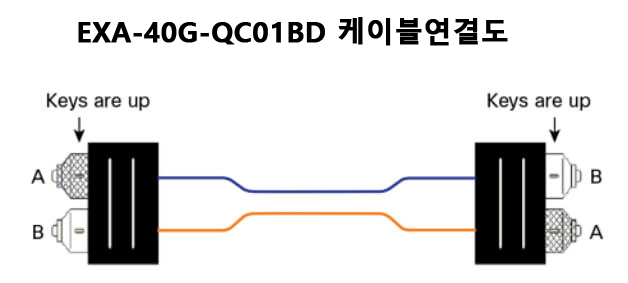

*EXA-40G-QC01BD CONNECTION























Á¦Ç°¿Ü°üÀº º¯°æµÉ ¼ö ÀÖ½À´Ï´Ù.

*º¥´õº° ȣȯ±¤¸ðµâÀº ºñ¿ëÃß°¡ µË´Ï´Ù.
