ÇÁ¸®Áò ÀÎÅͽÇĨ ä¿ëÀ¸·Î À©µµ¿ìÁî, ¸®´ª½º, PPC°è¿, CE°è¿ ¸ðµÎ Àß Áö¿øÇÕ´Ï´Ù.

¢Ö ¿ùµå º£½ºÆ® ¸ðµ¨ÀÇ ¹Ì·ÁÇÑ µðÀÚÀÎ

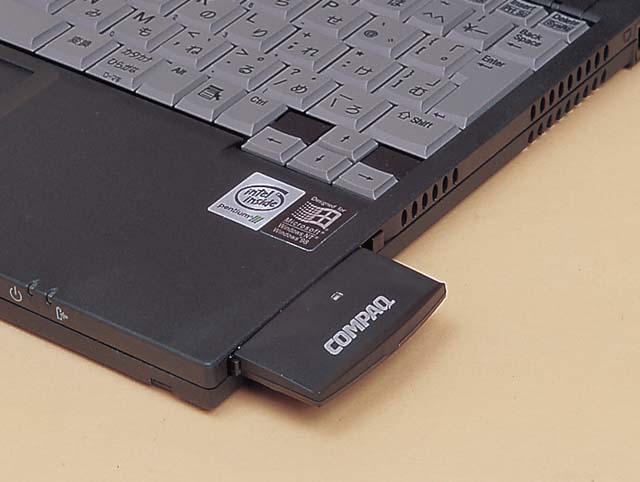

¢Ö ³ëÆ®ºÏ¿¡ ÀåÂøÇÑ ¸ð½À

¢Ö ¾ÈÅ׳ª¸¦ ¿¬°áÇϵµ·Ï °³Á¶ÇÑ ¸ð½À
This is an excellent card. Jornada 720 users can use Compaq Pocket PC 2000 drivers from http://www.compaq.com/support/files/handhelds/us/download/9531.html as they do work with the Jornada 720. Under these circumstances the WL100 uses channel 6 as standard but this version of the client manager (WL100STA.exe from service pack SP16044a) will give an error on installation and/or boot up.
However if you load the WinCE 2.11 drivers from service pack SP15585 they are fully functional with the J720 and give excellent Client Management facilities. Refer to the details above to see true signal level and quality displayed in real time, an example of the encryption key + profile editing tool and SSID network/card details.
Compaq have recently added a new client card to their wireless range. This being the WL110. The new card is obviously a re-badged Orinoco card and will address that later. I use the WL100 PCCard in my W2K server with WL300 Software Access Point. No additional boxes required ! There is no external antenna socket on this card.
Compaq Drivers for this card in SP15585.
Output Power: 100mW max Power Consumption: 3.3v - 185mA |
Compaq WL100 11 Mbps Wireless LAN PC Card Specifications
¡¡
|
Standards Compliance
- PC Card (PCMCIA) Type II
- IEEE 802.11b High Rate Direct Sequence Spread Spectrum
- Backward compatible with IEEE 802.11
- ETS 300 328 and ETS 300 826; CE Mark; FCC Part 15C, Section 15.247
- Supports all major networking standards including: TCP/IP, IPX, NetBEUI
|

| |
Security |
128-bit Wired Equivalent Privacy (WEP) Data Encryption |
Radio Device |
Frequency Range: 2.4 - 2.483 GHz |
|
Supported bit rates: 11 Mbps, 5.5Mbps, 2Mbps, 1Mbps |
Transmit power |
100mW maximum |
Antenna System |
Integrated dual diversity antenna |
Power Consumption |
185mA maximum (transmitting) |
Mechanical |
Dimensions: 105 x 54 x 5 mm |
Environmental |
Temperature Range: 0 - 40 C operating temperature |
|
Humidity 95% (non-condensing) |
Site Survey Utility |
Measures signal strength to aid in access point placement |
Operating System Support |
Windows 95, Windows 98, Windows NT 4.0, Windows 2000, Windows CE (processor-specific) |
|
|
|
 |
