CISCO AIR-AP1242AG-K-K9 트리플 AP
세계 최고브랜드 시스코사의 초강력 트리플 AP
판매가격 550,000
모델명 AIR-1242AG-K-K9 AP
제조원 CISC0
재고
구매수량 EA  품절

Cisco Aironet 1240AG Series IEEE 802.11a/b/g access points deliver the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. The Cisco Aironet 1240AG Series is available in either a lightweight or an autonomous version that may be field-upgraded to lightweight operation. A second-generation dual-band access point, the Cisco Aironet 1240AG Series supports IEEE 802.3af Power over Ethernet (PoE). The product comes complete with all necessary mounting hardware to provide for an installation that is both secure and rugged. The mounting bracket locks the access point as well as the Ethernet and console cables in place to prevent theft and tampering.

The Cisco Aironet 1240AG Series is available as an autonomous access point
or available supporting the Lightweight Access Point Protocol (LWAPP).
When configured with LWAPP, the Cisco Aironet 1240AG Series can automatically detect
the best-available Cisco wireless LAN controller and download appropriate policies
and configuration information with no hands-on intervention.
With simultaneous support of 802.11a and 802.11g standards,
the Cisco Aironet 1240AG Series delivers up to a 108-Mbps data rate in the 5-GHz and 2.4-GHz bands.
The series currently supports 12 non-overlapping channels
(FCC; other regulatory domains support different numbers of 802.11a channels)
with potentially up to 23 channels via a future firmware release depending on FCC rules.
Other regulatory domains may support a different number of channels, simplifying deployments
for high-capacity wireless networks.
For investment protection, the Cisco Aironet 1240AG Series fully supports the capabilities
of today's dual-band WLAN clients while providing backward compatibility with legacy 802.11b clients.
The Cisco Aironet 1240AG Series adheres to the most stringent security standards in the industry.
The 1240AG Series is on the FIPS 140-2 Pre-Validation List.
FIPS 140-2 is administered by the National Institute of Standards and Technology (NIST)
which dictates and validates the level of security for Federal agencies that use
cryptographic-based security systems to protect sensitive electronic information.
In addition it meets the Common Criteria standards.
The Cisco Aironet 1240AG Series is part of the award-winning Cisco Wireless Security Suite,
which supports 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA,
and numerous Extensible Authentication Protocol (EAP) types.
WPA and WPA2 are the Wi-Fi Alliance certifications for interoperable, standards-based WLAN security.
These certifications support IEEE 802.1X for user-based authentication,
Temporal Key Integrity Protocol (TKIP) for WPA encryption, and Advanced Encryption Standard (AES)
for WPA2 encryption. These certifications help to ensure interoperability
between Wi-Fi-certified WLAN devices from different manufacturers.
The Cisco Aironet 1240AG Series hardware-accelerated AES encryption supports
enterprise-class, government-grade secure encryption over the WLAN without compromising performance.
IEEE 802.1X authentication helps to ensure that only authorized users are allowed on the network.
Backward compatibility and support for WPA client devices running TKIP,
the RC4 encryption algorithm is also supported by the Cisco Aironet 1240AG Series.
LINK ROLE FLEXIBILITY

Link role flexibility provides both access point and bridge functions through configuration
of each radio as an access point, repeater, root bridge, non-root bridge, or workgroup bridge.
This array of configuration flexibility enables the Cisco Aironet 1240 Series to address
a wide range of applications including basic wireless LAN coverage,
wireless LAN coverage with wireless backhaul, and more traditional bridging applications (Table 1).

Table 1. Wireless LAN Link Role Flexibility Applications

Radio 1

(802.11g or 802.11a)

Radio 2

(802.11g or 802.11a)

RJ-45 State

Root Bridge (RB)

Root bridge, non-root bridge, access point, or workgroup bridge

Uplink

Non-Root Bridge (NRB)

Root bridge, non-root bridge, access point, or workgroup bridge

Uplink

Workgroup Bridge (WGB)

Root bridge, non-root bridge, or access point

Uplink

Access Point (AP)

Root bridge, non-root bridge, access point, or workgroup bridge

Uplink

Repeater

Root bridge, non-root bridge, or access point

Downlink


Note: Only one 802.11g radio and one 802.11a radio are supported in the Cisco Aironet 1240AG Series

APPLICATIONS

Designed for rugged environments and installations that require antenna versatility,

the Cisco Aironet 1240AG Series features antenna connectors for extended range or coverage versatility

and more flexible installation options. Manufacturing applications, for example, can place WLANs

in hazardous locations and remotely place antennas in the hazardous locations

while securing the Cisco Aironet 1240AG Series access points (Figure 1).

The access point without wired connection will use the 5-GHz radio to wirelessly connect

to the other access point for backhaul to the network.

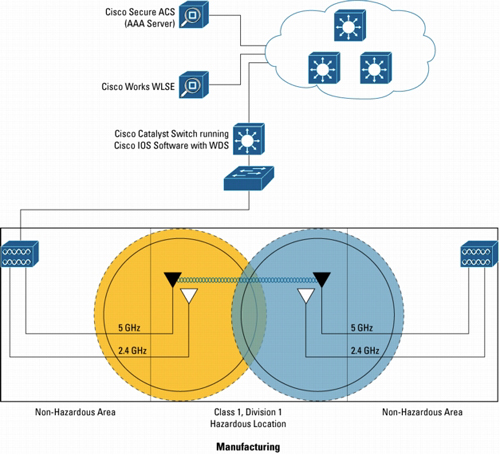

Figure 1. Cisco Aironet 1240AG Series Access Points in Manufacturing Environments



The metal housing and industrial-grade components of the Cisco Aironet 1240AG Series
provide the ruggedness and extended operating temperature range required in factories,
warehouses, "big box" retail environments, and similar facilities (Figure 2).
High transmit power, receive sensitivity, and delay spread for both 2.4-GHz
and 5-GHz radios provide the long range and large coverage area consistent
with these applications. 5-GHz radios are used as wireless bridges between access points
for backhaul to the network.

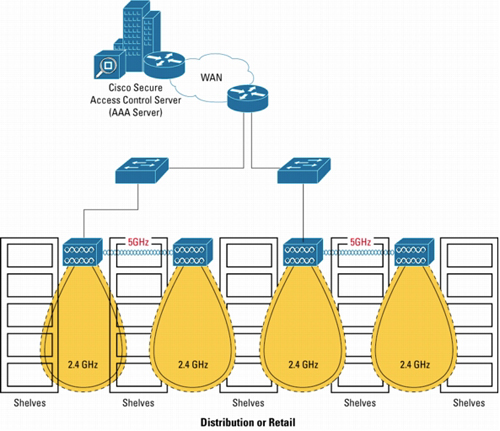

Figure 2. Cisco Aironet 1240AG Series Access Points in Retail Environments

Access points may be placed above ceilings or suspended ceilings,
allowing antennas to be discreetly placed below drop ceilings.
The UL 2043 rating of the Cisco Aironet 1240AG Series allows the access points
to be placed above ceilings in plenum areas regulated by municipal fire codes.
Public access applications such as large hotel buildings may also present a challenging RF environment;
the antenna versatility of the Cisco Aironet 1240AG Series,
together with industry-leading range and coverage, provides reliable performance
for the most demanding environments (Figure 3).

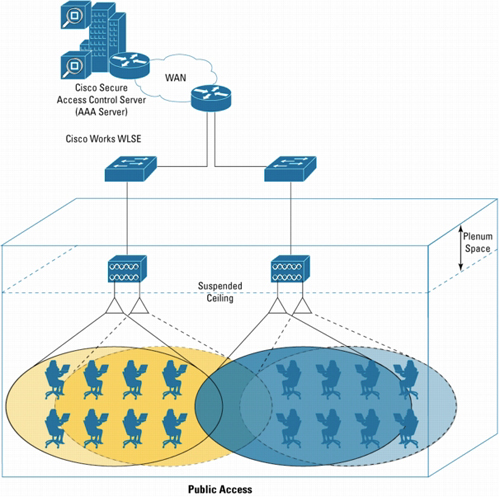

Figure 3. Cisco Aironet 1240AG Series Access Points in Public Access Areas


FEATURES AND BENEFITS

Table 2 lists the features and benefits of Cisco Aironet 1240AG Series access points.

Table 2. Features and Benefits of Cisco Aironet 1240AG Series Access Points

Feature

Benefit

Cisco Unified Wireless Network

Extends the security, scalability, reliability, ease of deployment, and manageability available in wired networks to the wireless infrastructure.

Dual 802.11a and 802.11g Radios

Provides up to 108 Mbps of capacity in a single device for industry-leading capacity and backward compatibility with legacy 802.11b clients.

Dual RP-TNC Antenna Connectors for Both 2.4-GHz and 5-GHz Radios

Antenna connectors support a variety of Cisco 2.4-GHz and 5-GHz antennas, providing range and coverage versatility.

Link Role Flexibility

Can function as access point or bridge, whether set up as a single-band or dual-band platform, allowing each radio to be individually configured as an access point repeater, root bridge, non-root bridge, or workgroup bridge, enabling a broad array of applications.

Security Architecture Client Authentication and Encryption

Cisco Wireless Security Suite supporting WPA and WPA2, including:

Authentication

Provides 802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP-Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAP), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2).

Provides MAC address and standard 802.11 authentication mechanisms.

Encryption

AES-CCMP encryption (WPA2)

TKIP encryption enhancement: key hashing (per-packet keying), message integrity check (MIC), and broadcast key rotation via Cisco TKIP or WPA TKIP.

Support for static and dynamic IEEE 802.11 WEP keys of 40 and 128 bits.

Currently Supports 12 Non-Overlapping Channels, with Potentially up to 23 Channels

Lower potential interference with neighboring access points simplifies deployment. Fewer transmission errors deliver greater throughput.

Rugged Metal Housing

Metal case and rugged features support deployment in factories, warehouses, the outdoors (NEMA enclosure required), and other industrial environments.

UL 2043 Plenum Rating and Extended Operating Temperature

Supports installation in environmental airspaces such as areas above suspended ceilings.

Multipurpose and Lockable Mounting Bracket

Provides greater flexibility in installation options for site survey options, as well as theft deterrence.

Both Local and Inline Power Supported, including IEEE 802.1af PoE

Power can be supplied using the Ethernet cable, eliminating the need for costly electrical power line runs to remotely installed access points. The access points can be powered by IEEE 802.3af PoE, Cisco inline power switches, single port power injectors, or local power.


PRODUCT SPECIFICATIONS

Table 3 lists the product specifications for Cisco Aironet 1240AG Series access points.

Table 3. Product Specifications for Cisco Aironet 1240AG Series Access Points

Item

Specification

Part Number

AIR-AP1242AG-x-K9

AIR-LAP1242AG-x-K9

Regulatory domains: (x = regulatory domain)

· A = FCC

· C = China

· E = ETSI

· I = Israel

· J = Japan

· K = Korea

· N = North America (excluding FCC)

· P = Japan2

· S = Singapore

· T = Taiwan

Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, please visit: http://www.cisco.com/go/aironet/compliance

Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.

Software

Cisco IOS Software Release 12.3(7)JA or later.

LWAPP 3.1 or later.

Data Rates Supported

· 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

· 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

Network Standard

IEEE 802.11a, 802.11b, and 802.11g

Uplink

Autosensing 802.3 10/100BASE-T Ethernet

Frequency Band and Operating Channels

Americas (FCC)

2.412 to 2.462 GHz; 11 channels

5.15 to 5.35, 5.725 to 5.825 GHz; 12 channels

China

2.412 to 2.472 GHz; 13 channels

5.725 to 5.825 GHz; 4 channels

ETSI

2.412 to 2.472 GHz; 13 channels

5.15 to 5.35 GHz; 8 channels

5470 to 5725 MHz, 11 channels

Israel

2.432 to 2.472 GHz, 9 channels

5.15 to 5.35 GHz; 8 channels

Japan

2.412 to 2.472 GHz; 13 channels Orthogonal Frequency Division Multiplexing (OFDM)

2.412 to 2.484 GHz; 14 channels Complementary Code Keying (CCK)

5.15 to 5.25 GHz; 4 channels

Korea

2.412 to 2.472 GHz; 13 channels

5.15 to 5.35, 5.46 to 5.72, 5.725 to 5.825, 19 channels

North America (not FCC)

2.412 to 2.462 GHz; 11 channels

5.15 to 5.35, 5.725 to 5.825 GHz; 12 channels

Japan2

2.412 to 2.472 GHz; 13 channels OFDM

2.412 to 2.484 GHz; 14 channels CCK

5.15 to 5.35 GHz; 8 channels

Singapore

2.412 to 2.472 GHz; 13 channels

5.15 to 5.35, 5.725 to 5.825 GHz; 12 channels

Taiwan

2.412 to 2.462 GHz; 11 channels

5.25 to 5.35, 5.725 to 5.825 GHz; 7 channels

Non-Overlapping Channels

802.11a: 12 channels (FCC; other regulatory domains support different numbers of 802.11a channels)

FCC currently supports 12 non-overlapping channels, with potentially up to 23 channels via a future firmware release depending on FCC rules.

802.11b/g: 3 channels

Receive Sensitivity
(Typical)

802.11a

6 Mbps: -88 dBm

9 Mbps: -87 dBm

12 Mbps: -86 dBm

18 Mbps: -85 dBm

24 Mbps: -82 dBm

36 Mbps: -79 dBm

48 Mbps: -74 dBm

54 Mbps: -73 dBm

802.11g

1 Mbps: -96 dBm

2 Mbps: -93 dBm

5.5 Mbps: -91 dBm

6 Mbps: -91 dBm

9 Mbps: -85 dBm

11 Mbps: -88 dBm

12 Mbps: -83 dBm

18 Mbps: -81 dBm

24 Mbps: -78 dBm

36 Mbps: -74 dBm

48 Mbps: -73 dBm

54 Mbps: -73 dBm

Available Transmit Power Settings
(Maximum Power Setting Will Vary by Channel and According to Individual Country Regulations)

802.11a

OFDM:

17 dBm (50 mW)

15 dBm (30 mW)

14 dBm (25 mW)

11 dBm (12 mW)

8 dBm (6 mW)

5 dBm (3 mW)

2 mW (2 dBm)

-1 dBm (1 mW)

802.11g

CCK:

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12 mW)

8 dBm (6 mW)

5 dBm (3 mW)

2 dBm (2 mW)

-1 dBm (1 mW)

OFDM

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12 mW)

8 dBm (6 mW)

5 dBm (3 mW)

2 dBm (2 mW)

-1 dBm (1 mW)

Range
(Typical)

Indoor (Distance Across Open Office Environment):

Outdoor:

802.11a:

85 ft (26 m) @ 54 Mbps

150 ft (46 m) @ 48 Mbps

210 ft (64 m) @ 36 Mbps

230 ft (70 m) @ 24 Mbps

260 ft (79 m) @ 18 Mbps

280 ft (85 m) @ 12 Mbps

310 ft (94 m) @ 9 Mbps

330 ft (100 m) @ 6 Mbps

802.11g:

105 ft (32 m) @ 54 Mbps

180 ft (55 m) @ 48 Mbps

260 ft (79 m) @ 36 Mbps

285 ft (87 m) @ 24 Mbps

330 ft (100 m) @ 18 Mbps

355 ft (108 m) @ 12 Mbps

365 ft (111 m) @ 11 Mbps

380 ft (116 m) @ 9 Mbps

410 ft (125 m) @ 6 Mbps

425 ft (130 m) @ 5.5 Mbps

445 ft (136 m) @ 2 Mbps

460 ft (140 m) @ 1 Mbps

802.11a:

100 ft (30 m) @ 54 Mbps

300 ft (91 m) @ 48 Mbps

425 ft (130 m) @ 36 Mbps

500 ft (152 m) @ 24 Mbps

550 ft (168 m) @ 18 Mbps

600 ft (183 m) @ 12 Mbps

625 ft (190 m) @ 9 Mbps

650 ft (198 m) @ 6 Mbps

802.11g:

120 ft (37 m) @ 54 Mbps

350 ft (107 m) @ 48 Mbps

550 ft (168 m) @ 36 Mbps

650 ft (198 m) @ 24 Mbps

750 ft (229 m) @ 18 Mbps

800 ft (244 m) @ 12 Mbps

820 ft (250 m) @ 11 Mbps

875 ft (267 m) @ 9 Mbps

900 ft (274 m) @ 6 Mbps

910 ft (277 m) @ 5.5 Mbps

940 ft (287 m) @ 2 Mbps

950 ft (290 m) @ 1 Mbps

Measured with 2.2-dBi dipole antenna for 2.4 GHz, and 3.5-dBi omnidirectional antenna for 5 GHz.

Compliance

Standards

· Safety
· UL 60950-1
· CAN/CSA-C22.2 No. 60950-1
· UL 2043
· IEC 60950-1
· EN 60950-1
· FIPS 140-2 Pre-Validation List
· Common Criteria
· Radio approvals
· FCC Part 15.247, 15.407
· RSS-210 (Canada)
· EN 300.328, EN 301.893 (Europe)
· ARIB-STD 33 (Japan)
· ARIB-STD 66 (Japan)
· ARIB-STD T71 (Japan)
· AS/NZS 4268.2003 (Australia and New Zealand)
· EMI and susceptibility (Class B)
· FCC Part 15.107 and 15.109
· ICES-003 (Canada)
· VCCI (Japan)
· EN 301.489-1 and -17 (Europe)
· Security
· 802.11i, WPA2, WPA
· 802.1X
· AES, TKIP
· Other
· IEEE 802.11g and IEEE 802.11a
· FCC Bulletin OET-65C
· RSS-102
Antenna Connectors

2.4 GHz

· Dual RP-TNC connectors

5 GHz

· Dual RP-TNC connectors
Network Management

BootP, Secure Shell (SSH) Protocol, Secure HTTP (HTTPS), Trivial File Transfer Protocol (TFTP), FTP, Telnet, console port, Simple Network Management Protocol (SNMP) MIB I and MIB II, CiscoWorks Resource Manager Essentials (RME), CiscoWorks Software Image Manager (SWIM), CiscoWorks Campus Manager, CiscoWorks CiscoView, and CiscoWorks Wireless LAN Solution Engine (WLSE)

Status LEDs
· Status LED indicates operating state, association status, error/warning condition, boot sequence, and maintenance status
· Ethernet LED indicates activity over the Ethernet, status
· Radio LED indicates activity over the radio, status
Dimensions (WxLxH)

6.6x8.5x1.1 in. (16.76x21.59x2.79 cm)

Weight

2.0 lbs

Environmental
· Nonoperating (storage) temperature:

-40 to 185°F (-40 to 85°C)

· Operating temperature:

-4 to +131°F (-20 to +55°C)

· Operating/noncondensing humidity

10 to 90 percent

System Memory
· 32 MB RAM
· 16 MB flash
Input Power Requirements
· 100 to 240 VAC; 50 to 60Hz (power supply)
· 36 to 57 VDC (device)
Powering Options
· Local power
· 802.3 AF switches
· Cisco legacy PoE switches
· Cisco Aironet power Injectors (PWRINJ3 and PWRINJ-FIB)
· Third-party PoE devices (must meet input power and power draw requirements)
Power Draw

12.95W maximum

Note: 12.95W is the maximum power required at the powered device. If the access point is being used in a PoE configuration, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W.

Warranty

One year

Wi-Fi Certification



SYSTEM REQUIREMENTS

Table 4 lists the system requirements for Cisco Aironet 1242AG access points.

Table 4. System Requirements for Cisco Aironet 1242AG Access Points

Access Method

Description

Browser

Using the Web browser management GUI, requires a computer running Internet Explorer Version 6.0 or newer, or Netscape Navigator Version 7.0 or newer.

PoE

Power sourcing equipment compliant with Cisco inline power or IEEE 802.3af, and providing at least 12.2W at 48 VDC.

ORDERING INFORMATION

To place an order, visit the Cisco Ordering Website at: http://www.cisco.com/en/US/ordering/index.shtml

Table 5. Product Part Numbers for Cisco Aironet 1242AG Access Points

Part Number

Description

AIR-AP1242AG-A-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; FCC configuration

AIR-AP1242AG-C-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; China configuration

AIR-AP1242AG-E-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; ETSI configuration

AIR-AP1242AG-I-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; Israel configuration

AIR-AP1242AG-J-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; Japan configuration

AIR-AP1242AG-K-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; Korea configuration

AIR-AP1242AG-N-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; North America configuration (not FCC)

AIR-AP1242AG-P-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; Japan2 configuration

AIR-AP1242AG-S-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; Singapore configuration

AIR-AP1242AG-T-K9

802.11a/g Non-modular Cisco IOS access point; RP-TNC; Taiwan configuration

AIR-LAP1242AG-A-K9

802.11ag Non-modular LWAPP access point; RP-TNC; FCC configuration

AIR-LAP1242AG-C-K9

802.11ag Non-modular LWAPP access point; RP-TNC; China configuration

AIR-LAP1242AG-E-K9

802.11ag Non-modular LWAPP access point; RP-TNC; ETSI configuration

AIR-LAP1242AG-I-K9

802.11ag Non-modular LWAPP access point; RP-TNC; Israel configuration

AIR-LAP1242AG-K-K9

802.11ag Non-modular LWAPP access point; RP-TNC; Korea configuration

AIR-LAP1242AG-N-K9

802.11ag Non-modular LWAPP access point; RP-TNC; North America configuration (not FCC)

AIR-LAP1242AG-P-K9

802.11ag Non-modular LWAPP access point; RP-TNC; Japan2 configuration

AIR-LAP1242AG-S-K9

802.11ag Non-modular LWAPP access point; RP-TNC; Singapore configuration

AIR-LAP1242AG-T-K9

802.11ag Non-modular LWAPP access point; RP-TNC; Taiwan configuration














본제품은 시스코사로 부터 수입하는 고성능 신제품으로
주문후 반드시 배송관련하여 문의하여 주십시요.
