Cascade Pilot PE(Personal Edition)- 유무선  네트웍 분석툴

Cascade Pilot PE(Personal Edition)- 유무선 네트웍 분석툴
유무선 대용량 네트웍 정밀분석툴,Wireshark 호환,네트웍엔지니어 필수품,옵션(Enterprise업그레이드)
판매가격 2,300,000
관련상품 포함가 2,300,000
기업버젼 업그레이드
모델명 Cascade Pilot PE
제조원 리버베드
원산지 USA
재고 판매중
구매수량 EA
 AirPcap Nx- 무선패킷 수집 + 주석삽입 USB
 무선패킷 수집,분석,주석삽입 802.11a/b/g/n 지원, (USB 3.0 미지원)

Cascade Pilot PE (Personal Edition)유무선 네트웍 분석툴

(신 모델명: SteelCentral Packet Analyzer Personal Edition)


강력한 네트웍 분석,모니터링,시각적표현 과 레포팅 제공.

Cascade Pilot PE® 는 네트웍분석의 결정판으로 Wireshark 과 호환되며 Wireshark의 철저한 분석과 필터를 제공하며,개인사용자 편의성을 극대화한 직관적 인터페이스와 분석 및 문제해결의 효율성을 극대화하도록 설계하여,Full Cascade Pilot 제품에 포함된 기업용 특징과 수집한 패킷을 분배하는 기능을 생략한 제품입니다.


Cascade Pilot PE소개


Cascade Pilot PE® 를 사용하여 :

  • Quickly open and analysis multi-gigabyte trace files.
  • Easily isolate and identify traffic of interest through an extensive collection of network analysis metrics called “Views”
  • Visualize long-duration live and off-line traffic statistics by moving back in time through large data sets with just a few mouse clicks
  • Using trend indices, apply compatible Views to 50GB and larger trace files in a matter of seconds (Option: Full Version)
  • Baseline and monitor long-duration network traffic with a flexible trigger-alerting mechanism called “Watches”
  • Create professional reports directly from the user's customized Views
  • Take advantage of Wireshark’s capture and display filters and prodigious dissector library for deep packet analysis from within Cascade Pilot PE.




1. Wireshark Within

Cascade Pilot PE is the only analysis tool to offer full integration with Wireshark. Use Wireshark on very large trace files by isolating interesting portions of the trace file using Cascade Pilot PE’s Adaptive Analysis Engine. The Wireshark capture and display filters are available within Cascadw Pilot PE as well as Wireshark’s prodigious dissector library for deep packet analysis.


2. Views: 유연한 분석 과 시각적인 Paradigm

Cascade Pilot PE offers a broad selection of interactive View metrics to meet all of the user's troubleshooting needs. These include:

  • 802.11 WLAN troubleshooting (Discovery, Bandwidth, Channel Usage, Retransmissions, Signal and Noise)
  • LAN and network troubleshooting (MAC, VLAN, ARP, ICMP, DHCP, and DNS)
  • Bandwidth usage (including MicroBursts, IP, TCP, Web, and VoIP)
  • Talkers and conversations (IP, subnets, countries, TCP, Web, and VoIP)
  • Performance and errors (IP, TCP, Web, VoIP)
  • User activity (Web, VoIP)



3. Charts: 동적 시각처리 Components

Cascade Pilot PE includes a complete collection of interactive Charts including bar, pie, and strip charts, conversation rings, scatter diagrams and grids. Intuitive point-and-click process for selecting elements within a Chart, such as bars within a bar chart or time intervals within a strip chart.


4. Drill-Down: 혁신적인 심층 분석

Drill-down is one of the most powerful and unique features in Cascade Pilot PE. Drill-down occurs when the user applies a View to a source which itself is the result of a selection made within a previously-instantiated View. This powerful paradigm increases the user's analysis capabilities many-fold. Very large trace files can be analyzed using the drill-down feature to quickly find and isolate anomalous network behavior.


5. Time Control: 유연하게,장기간 트랜딩,모니터링 과 증거분석

Viewing network traffic metrics computed over days, weeks, and months can be challenging. With Cascade Pilot PE’s “back-in-time”capability, you can easily move through View metrics over extended periods of time with just a few mouse clicks. Based on the selected time interval, sub-sampling and data aggregation techniques are used to optimize the granularity of the visual presentation of View metrics. The back-in-time capability can be applied to live and off-line traffic metrics.


6. Watches: Advanced Trigger-Alerting Mechanism

Cascade Pilot PE includes a sophisticated triggering and alerting technology called “Watches.” It is possible to create a Watch (trigger plus action) on virtually any View metric and be alerted based on a trigger condition computed on the metric. For example, the user can be alerted on high bandwidth, slow server response time, high TCP round-trip time, and so on. When a Watch detects that a trigger condition has been met, an action will be executed. Actions include event logging, sending email, and starting a packet capture.


7. 뛰어난 레포팅

Cascade Pilot PE offers an enhanced set of reporting capabilities that integrate fully with Cascade Pilot PE Views, enabling you to create professional reports from what you see on the screen. Cascade Pilot PE reports can be created in a variety of formats including PDF, Word and Excel.


8. AirPcap 사용, 완벽한 무선분석 지원(옵션)

Cascade Pilot PE offers unparalleled functionality and versatility when applied to wireless networks through a comprehensive set of 802.11 Views that can be applied directly to 802.11 wireless sources.

Thanks to the integration with Riverbed' AirPcap adapters, Cascade Pilot PE is the only product in the industry to offer full multi-channel packet capture from a laptop-based system. With AirPcap Nx, Cascade Pilot PE can speed up the decryption of WPA and WPA2 (pre-shared key) 802.11 frames as well.


* 화면구성 보기

1.사용자 인터페이스 보기

2.Overview Tool Tip 보기

3.Setting Up a Watch 보기

4.Performance and Error Tool Tip 보기

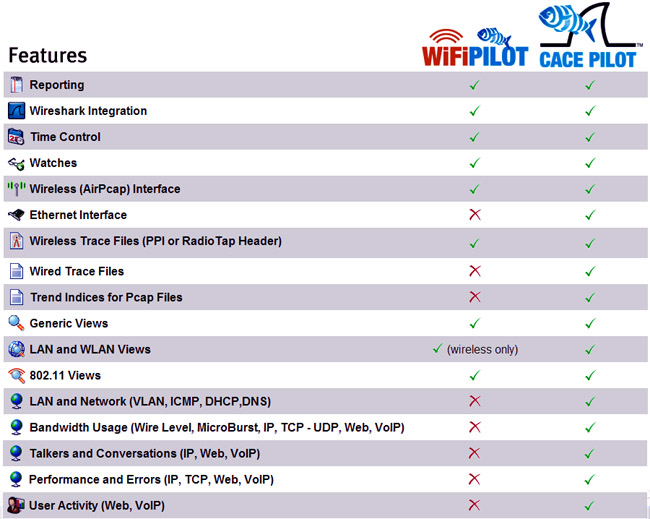

* Cascade Pilot PE (late;CACE Pilot )와 Wi-Fi Pilot 비교표


*업데이트 및 시스템사양

Riverbed® SteelCentral™ Packet Analyzer requires a system with the following hardware and software configuration:

Windows XP (SP3), Windows Vista, Windows 7, Windows 8, Windows 8.1

-System Software
Microsoft NET Framework 4.0 (or later) (If not found, installer provides a link to download from Microsoft)

A dual-core 2.0 GHz CPU or better
Available Disk Space
Base installation: approximately 300MB Plus: additional space for generated reports or trace files

2 GB or more of system memory

-Video Hardware and Settings
A graphics card with a minimum resolution of 1024 x 768

-Display Settings
Text size: 100% (default) - displayed text may be truncated when a larger text size is used
– see Control Panel > All Control Panel Items > Display

-If Using Concurrent License Server (SteelCentral Packet Analyzer only)
Network connection to a Riverbed® SteelCentral™ NetProfiler or Riverbed® SteelCentral™ NetExpress or a Riverbed® SteelCentral™ NetShark. The virtual editions of these products also support the concurrent license server.

Note: SteelCentral Packet Analyzer personal edition does not use concurrent licenses.
Only single-seat licenses can be used with Packet Analyzer personal edition.

* CACE Pilot 는 제조사 합병관계로 신제품 Cascade Pilot PE

혹은 SteelCentral Packet Analyzer Personal Edition로 제품명이 변경되었습니다.


설치메뉴얼(버젼 10-7) 보러가기



제품 레퍼런스 자료보러가기



제품설명 비디오 및 다양한 자료 보러가기 클릭!!!

제품 기능 소개 비디오 보기

Introduction: Isolate a Web Server Performance Problem »

6:20 video (min:sec)

Integration with Wireshark »
4:22 video (min:sec)

Charts: Dynamic Visualization Components »
3:45 video (min:sec)

Drill-Down: Innovative In-Depth Analysis »
6:32 video (min:sec)

Time Control: Flexible, Long-term Trending, Monitoring and Forensics »
2:58 video (min:sec)

Watches: Advanced Trigger-Alerting Mechanism »
2:52 video (min:sec)

Superior Reporting »
3:45 video (min:sec)

Unparalleled Wireless Support with AirPcap »
6:44 video (min:sec)

* 옵션: Enterprise 버젼으로 업그레이드
( 업그레이드 +1년 유지비용=4,500,000원)

SteelCentral™ Packet Analyzer PE to Enterprise Upgrade

SteelCentral™ Packet Analyzer Personal Edition (formerly Cascade Pilot Personal Edition) owners can now upgrade to the Enterprise Edition! Existing SteelCentral™ Packet Analyzer PE owners with a valid product activation key can upgrade to SteelCentral™ Packet Analyzer Enterprise for the difference in price of the two products and their support components.

SteelCentral™ Packet Analyzer Enterprise, like the Personal Edition, is a visually rich and powerful analyzer for wired and wireless networks that revolutionizes the use of Wireshark by providing capabilities not found in the world’s most popular packet and network analysis tool. The Enterprise version goes beyond PE features by providing:

• Analysis from local sources (Ethernet NIC, AirPcap, pcap files)as well as interaction with SteelCentral™ NetShark (formerly Cascade Shark) appliances, SteelCentral™ NetProfilers (formerly Cascade Profiler) and Riverbed Steelhead embedded probes to provide live, remote, and distributed analysis capabilities.

• Analysis of packet traces from locally or remotely presented pcap and pcap-ng files

• FIX, SQL, Multi-Segment, CIFS, VDI, Citrix, VXLAN Analysis and other WAN-specific Views

• A Views Editor for customizing or building new Views

• Sequence diagrams for conversation path analysis and latency discovery Fully integrated with Wireshark, SteelCentral™ Packet Analyzer Enterprise capitalizes on your existing analysis expertise while dramatically increasing efficiency in identifying and diagnosing network problems.

Pricing includes 1 year of Software Maintenance that can be renewed annually. Software Maintenance includes 12 months of product updates and support.
