WLNG-ET-DP501
- 802.11b/g WiFi Radio with 32bit ARM9 CPU
- Enterprise Class wireless security (WPA2-Enterprise, WPA2-PSK, WPA-PSK, WEP, EAP) with Certificates
- Extended operating temperature range (-40¡ÆC to +85¡ÆC) and environmental specifications, including shock and vibration tolerance
- Integrated 10/100 Ethernet PHY
- Configurable wireless and wired interfaces
- Removes need for RF, networking and communications expertise
- Quick time to market and reduced integration costs
- FCC Part 15 Class B Sub C Modular Approval minimizes regulatory testing requirements
- Upgradable Airborne Device Server Firmware
- 5 year limited warranty

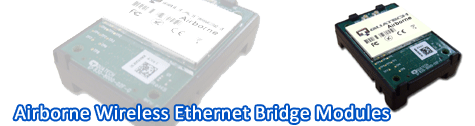

Airborne Enterprise Wireless Device Server MODULE- WLNG-ET-DP501 Model
Technology: |
IEEE 802.11, WiFi Compliant |
Frequency: |
2.4~2.4835 GHz (US/Canada/Europe) 2.4~2.497 GHz (Japan) |
Modulation Technology: |
DSSS, CCK, OFDM |
Modulation Type: |
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM |
Network Access Modes: |
Infrastructure, Ad Hoc |
Channels: |
USA/Canada: 11 Channels Europe: 13 Channels France: 4 Channels Japan: 14 Channels (13 channels for 802.11g) |
Wireless Data Rate: |
802.11b- 11, 5.5, 2, 1 Mbps 802.11g- 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
MAC |
CSMA/CA with ACK, RTS, CTS |
Network Protocols |
TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING |
Receive Sensitivity: |
54Mb/s = -69dBm 6Mb/s= -86dBm 1Mb/s= -86dBm |
Security Protocols: |
Disabled, WEP 64 & 128bit, WPA (TKIP), WPA (AES), WPA2 (AES), 802.1x (EAP) Supplicant Supports WPA & WPA2 Enterprise supplicants EAP-TLS/MSCHAPV2, EAPTTLS/ MSCHAPv2, EAP-TTLS(MD5), EAP-PEAPv0/MSCHAPv2, LEAP Zero host security footprint Supports Certificate, delivery and management |
Antenna: |
Two (2) U.FL coaxial connectors, 50 ¥Ø, supports diversity |
Supply: |
3.3VDC +/-5%, 850mA (MAX) |
Supply In-rush Current: |
3000mA (MAX) for 20ms |
DC Characteristics: |
Operating Current (Tx, 802.11g) = 500mA Typ. Operating Current (Rx, 802.11g) = 530mA Typ. Power Save (Doze) = 10mA Typ. Power Down (Sleep) = 1mA Typ. |
Environmental Specs: |
Temperature: -40¡ÆC- +85¡ÆC, Storage -55¡ÆC- +150¡ÆC Relative humidity: 5%-95% (non-condensing) Vibration: 20G peak-to-peak, 20Hz-2KHz swept Shock:1500G peak-to-peak, 0.5mS duration |
Interfaces: |
10/100 Ethernet |
Digital I/O |
8 GPIO |
LED Indicators |
4 indicator LED signals, (RF_ACT, POST, CONNECT, RF_LINK) |
Connector: |
36 pin High Density SMT connector from Hirose (DF12-36DS-0.5V, 4mm Height) |
Agency Approvals: |
Worldwide Certification Support- FCC Part 15 Class B Sub C Modular Approval, IOC, CE, ETSI, ROHS, WEEE
|

| |
|
|
|
 |
