DP10x Series
- Extended operating temperature range (-40¡ÆC to +85¡ÆC) and environmental specifications, including shock and vibration tolerance
- Wireless security: WEP (64 & 128 bit), WPA and 802.1x (LEAP) authentication
- Highly integrated 802.11b/g wireless module with radio, base-band & application processor
- Quick time to market & reduced development costs
- Software-configurable 802.11b/g interface
- Configurable serial, digital & analog I/O ports
- Integrated RTOS, TCP/IP Stack and CLI
- FCC Part 15 Class B Sub C Modular Approval
- Removes need for RF, networking and communications expertise
- 5 year warranty

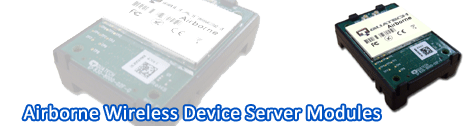

AIRBORNE EMBEDDED WIRELESS DEVICE SERVER MODULE (DP10x Series)
Technology: |
IEEE 802.11b/g, WiFi compliant (802.11i, 802.11e, 802.11d capable) |
Frequency: |
2.4 ~ 2.4835 GHz (US/Can/Europe) 2.471 ~ 2.497 GHz (Japan) |
Modulation Technology: |
DSSS, CCK, OFDM |
Modulation Type: |
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM |
Network Access Modes: |
Ad-hoc, infrastructure |
Channels: |
11 channels - USA/Canada 13 channels - Europe 14 channels - Japan 4 channels - France |
Data Rate: |
802.11b rate: 11, 5.5, 2, 1 Mbps 802.11b/g rate: 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
MAC: |
CSMA/CA with ACK, RTS, CTS |
Data Transfer: |
TCP/IP, HTTP, UDP |
Sensitivity: |
-71 dBm for 54Mbps -77 dBm for 36Mbps -83 dBm for 18Mbps -85 dBm for 11Mbps -87 dBm for 1Mbps |
Security: |
WEP 64 & 128 bit (RC4), WPA (TKIP), 802.11x (LEAP) |
Antenna: |
Two U.FL coaxial connectors, 50 ohms, supports receive diversity |
Supply: |
3.3 VDC +/-5% |
Current Consumption: |
575mA - transit mode (typical) 375mA - receive mode (typical) |
Power Up Inrush Current: |
3000 mA (max) 20ms |
Operating Temperature: |
-40¡ÆC - +85¡ÆC |
Serial Interface Data Throughput: |
UART up to 460k Baud rate |
Analog Inputs: |
Up to 8 channels, 10 bit resolution, single ended, 0-2.5V |
Connector: |
36 Pin (P/N: HRS DF 12-36DS-0.5V) 4-mm height |
Agency Approvals: |
FCC Part 15 Class B Sub C Intentional CE ETSI EN300 328, EN301 489, ETSI 60950-1 IC RSS210 RoHS and WEEE compliant |
 | |
|
|
|
 |
