- Extended operating temperature range (-40¡ÆC to +85¡ÆC) and environmental specifications
- Advanced security support includes WEP 64/128, WPA (TKIP), 802.1x (LEAP)
- SAE J1455 compatible power supply
- Low power modes
- Ruggedized Deutsch enclosure and connector
- 10Base-T interface
- 802.11b/g compliant radio
- Quick time to market & reduced development costs
- FCC Part 15 Class B Sub C Approval
- Reduces need for RF and communications expertise
- RP-SMA connector available for cable or direct antenna connection
- Device integration does not require OS specific drivers

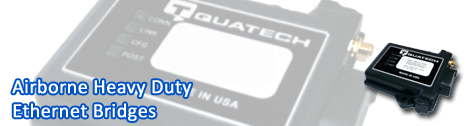

Airborne Heavy Duty 802.11b/g Ethernet Bridges
Ethernet Interface: 10Base-T, RJ-45 Male with pigtail, 10Mbps
Wireless Network Interface: IEEE 802.11b/g DSSS, WiFi Compliant
Frequency: 2.4 - 2.4835 GHz (US, Europe, Canada, Japan) 2.471 - 2.497 GHz (Japan)
Channels: 11 - US/Canada 13 - Europe 14 - Japan 4 - France
Wireless Raw Data Rates: 802.11b mode: 11Mbps, 5.5Mbps, 2Mbps, 1Mbps 802.11g mode: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 12Mbps, 9Mbps, 6Mbps
RF Output Power: 802.11b mode: +18dBm (typ) with 3dBi antenna 802.11g mode: +15dBm (typ) with 3dBi antenna
Security: WEP (64 & 128 bit), WPA (PSK & TKIP), WPA with LEAP
Antenna: integrated RP-SMA connector
Status Indicators: POST, CFG, LINK, CONN
Power Input: 5VDC to 36VDC, through Deutsch connector. Line level input control of power supply
Power Consumption: 2W max
Device Management: Device discovery, Airborne Control Center application, web interface, plain text Command Line interface, firmware upgrade, OEM configuration utility
Agency Approvals: FCC Part 15 Class B, C/UL, CE, RoHS and WEEE compliant Europe - CE Canada - RS-210
OS Compatibility: AirborneDirect - Win95/ME/NT/2000/XP/Vista and Linux Airborne Control Center - Win2000/XP
Operating Temperature: -40¡Æ C to +85¡Æ C
Storage Temperature: -40¡Æ C to +125¡Æ C

Model No. |
Interface |
WiFi |
Security |
RoHS |
Accessory Kit
|
RS-232 |
10Base-T |
802.11b/g |
WEP |
WPA |
LEAP |
ABDG-SE-HD101 |
• |
|
• |
• |
• |
• |
• |
|
ABEG-SE-HD101 |
• |
|
• |
• |
• |
• |
• |
• |
ABDG-ET-HD101 |
|
• |
• |
• |
• |
|
• |
|
ABEG-ET-HD101 |
|
• |
• |
|
|
|
• |
• |
Applications
The Airborne bridge enable telematics systems to connect to corporate and public wireless LAN networks, commonly deployed at warehouses, ports and transit centers.
Ruggedized hardware is incorporated for harsh environmental conditions faced by trucks, buses, heavy equipment and automobiles. In addition, the Airborne Heavy Duty Bridge runs directly on vehicle battery power to enable easy integration by telematics solution providers. |
| |
